ax726DWpro – Axsys Dental

The Ultimate in 24-Hour Production

Versamill 7 Series machines are tested and fully qualified to assure accuracy and that they arrive completely ready for production. This includes perpendicularity between rotary axes, which is critical in 5-axis manufacturing. 

All Versamill 7 Series machines are assembled in our Traverse City facility using foreign and domestic components. This includes the machine control, which is developed in the USA. 

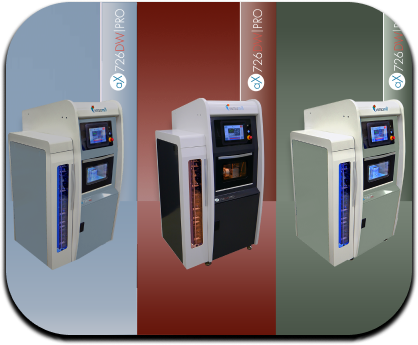

You can even select your choice of colors. Choose between Charcoal, Clinician Blue, and Sage Wisdom–whichever best suits your unique environment. 

Extreme Rigidity,

Precision and Vibration-free Automated Operation

Versamill features like granite machine bases, 6.0mm tooling, high-torque spindle, large diameter pre-loaded ball screws, heavy-duty linear guideways, zero stack tolerance rotary axes, and more enable you to quickly and reliably manufacture restorations with perfect fits and razor-sharp margins—with the minimum of profit-robbing, error-prone post-machining hand work.

The Versamill AX726DW|PRO with its fully automated blank magazine, also enables versatile machining of up to 18 blanks in unmanned operation. Due to the precise positioning of our modular jigs and zero-tolerance fixturing system, different pre-milled abutment holders can be used.

The Automated All-in-One Solution

The Versamill AX726DW|PRO line of dental machining centers features the latest in high-speed dental machining technology. Designed to meet the demanding requirements of modern CAD/CAM processing, AX726DW|PRO solutions allow for the reliable, precision processing of virtually all present and future dental materials in a single, simple system.

Designed with “Factory of the Future” automation in mind, the Versamill AX726DW|PRO fully supports Digital Dentistry 2.0 automation concepts. With its fully automated blank magazine loader, the versatile, precision machining of innumerable restorations in up to 12 blanks can be accomplished in unmanned operation.

Additionally, the zero-point clamping system allows you to secure a wide range of adapters to facilitate the processing of dental materials In a wide variety of form factors, including pre-milled abutment blanks and glass-ceramic blanks. C-Clamp holders are also supported.

Play Video

35Ncm

POWERFUL HIGH-TORQUE 60,000 rpm AC SPINDLE

6.0mm

FLEX RESISTING TOOL SHANK DIAMETER

260kg

WEIGHT WITH GRANITE BASE

With Auto-Loader

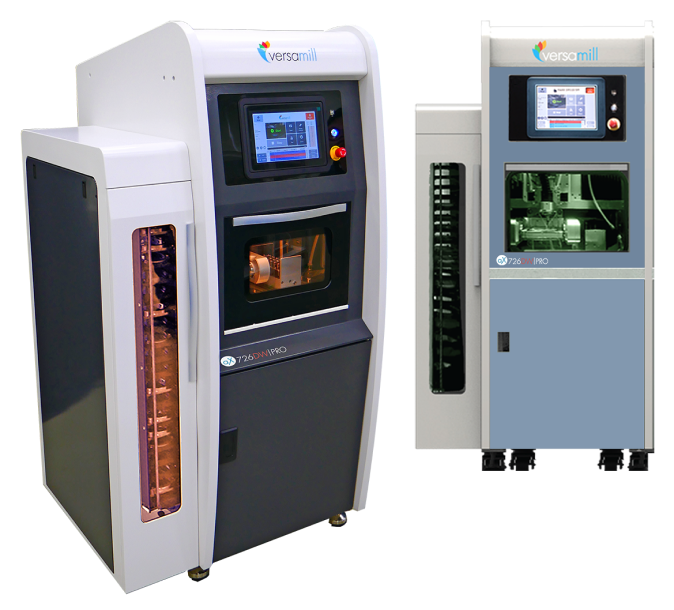

The AX 726DW PRO is a dry or wet processing machine that features an 18-position robotic auto-loader. These robotic loaders have stood the test of time and are free from the frequent failures of the traditionally heavily mechanized auto-loaders available on the market today.

The extreme stability of the AX726DW PRO together with its high-torque spindle and servo motor-driven drives, enable the processing of virtually any prosthesis made of the vast choice of dental materials available today and tomorrow—all with fine detail and clean, thin restorative margins.

Highlights

The extreme stability of the AX726DW together with its high-torque spindle and servo motor-driven drives, enable the processing of virtually any prosthesis made of the vast choice of dental materials available today and tomorrow—all with fine detail and clean, thin restorative margins.

AX 726DW PRO highlights include:

Hiigh-torque, 2.7kW spindle
3X hybrid-ceramic bearings
Flex reducing 6mm tooling
Choice of hyperDENT or GO2cam software
Small footprint
Circular, mandrel, C-clamp & Pre-mill fixtures
Much more...

Features

High-torque, 2.7kW max spindle with 3 ceramic hybrid bearings that help to reduce margin thickness and extend spindle life by reducing deflection and protecting against contamination by cutting chips and coolant.

Heavy, stable granite frame with the lowest coefficient of linear expansion. Provides the rigidity and precision to enable the production of the highest possible restoration precision.

16-station ATC houses sturdy, flex-resisting 6mm-diameter cutting tools with automatic tool management and breakage sensor.

Maximize productivity by overnight and week-end operation with a class-leading 18-position robotic autoloader.

Superior dynamic motion and positional accuracy thanks to large-diameter precision ball screws, anti-backlash ball nuts, and linear guides with closed loop servo drives.

Designed for higher-production dental labs and milling centers, Series 7 machines are capable of machining hard metals such as titanium and cobalt chrome, as well as zirconia and virtually any other dental material, including models.

Couple class-leading rotary operating range of ± 35° and 94mm Z-axis stroke, with granite frame, and Axsys expert machining templates to produce restorations with undercuts and clean, thin margins.

Each Versamill goes through our 45-point inspection and validation process at our Traverse City, MI R&D facility in addition to testing of perpendicularity of the A-axis and B-axis—vital for accurate multi-axis manufacturing.

Complete Solution

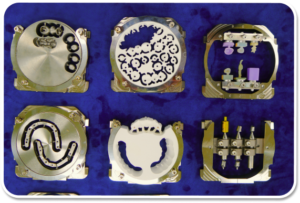

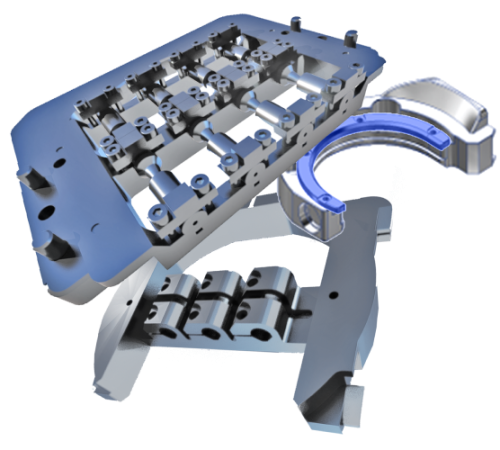

We provide the widest range of fixtures for our Versamill dental mills, whether it be for premill blanks, Cerec or PrograMILL- type blocks, C-Clamps, etc. We currently support industry leaders such as; DESS, Straumann, Medentika, Open Implants, Dentaswiss, Preat, NT Trading, Arum, and others.

We can also supply either an OEM or a custom-designed and manufactured fixture to meet your needs.

Materials and Indications

CAM SOFTWARE:
PROVEN & FULL-FEATURED

The Versamill AX314DW is powered by your choice of GO2cam or hyperDENT CAM software from FOLLOW-ME! Technology Group. These products are selected as they incorporate efficient proven milling cycles from the industrial segment to provide maximum process stability and indication quality, including patent-protected milling strategies used for complex materials ensuring perfect surface quality while maximizing tool life

All Versamill machines come with Axsys’ award-winning support and unique software and machine enhancements not available from any other supplier. We leverage over 40 years of digital design and manufacturing experience—spanning a variety of industries—to provide additional functionality, unrivaled reliability, and increased productivity.

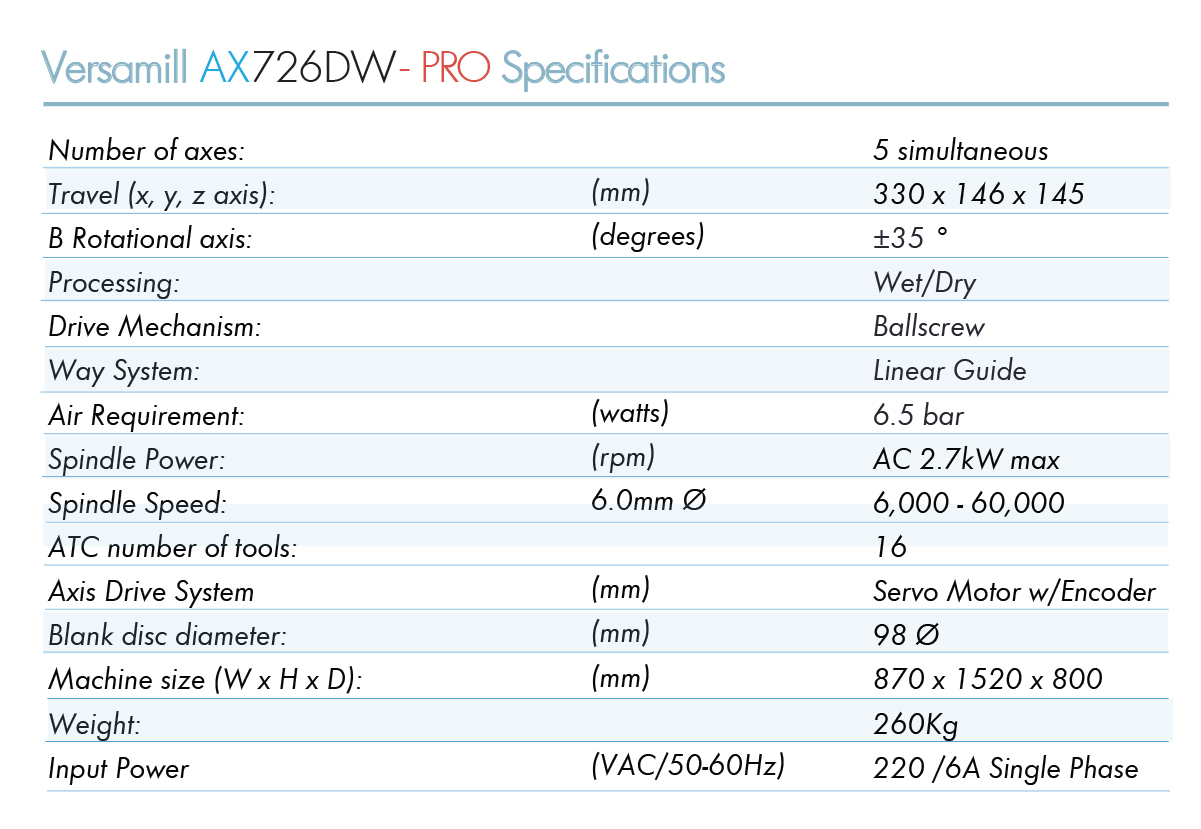

Specifications
