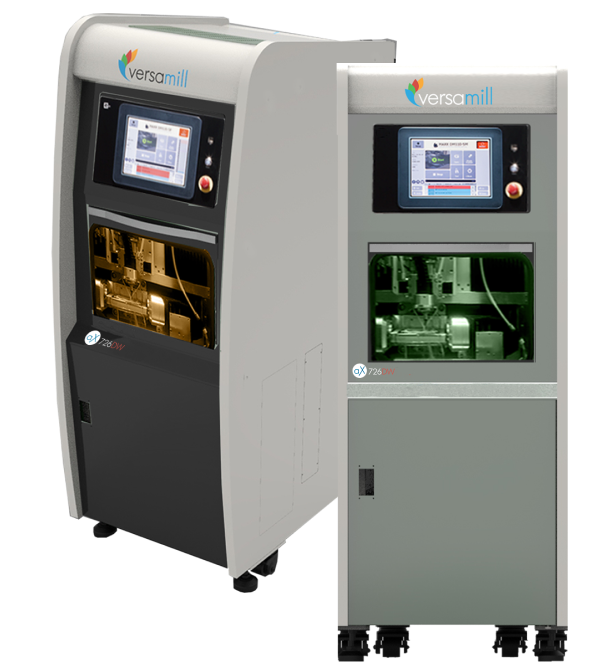

ax726DW – Axsys Dental

For Processing All Dental Materials

Versamill 7 Series machines are tested and fully qualified to assure accuracy and that they arrive completely ready for production. This includes perpendicularity between rotary axes, which is critical in 5-axis manufacturing.

All Versamill 7 Series machines are assembled in our Traverse City facility using foreign and domestic components. This includes the machine control which is developed in the USA.

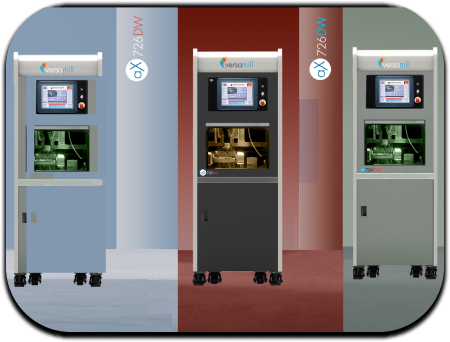

You can even select your choice of colors. Choose between Charcoal, Clinician Blue, and Sage Wisdom–whichever best suits your unique environment.

Extreme Rigidity,

Precision and Vibration-free Automated Operation

Versamill features like granite machine bases, 6.0mm tooling, high-torque spindle, large diameter pre-loaded ball screws, heavy-duty linear guideways, zero stack tolerance rotary axes, and more enable you to quickly and reliably manufacture restorations with perfect fits and razor-sharp margins—with the minimum of profit-robbing, error-prone post-machining hand work.

Due to the precise positioning of our modular jigs and zero-tolerance fixturing system, different pre-milled abutment holders can be used.

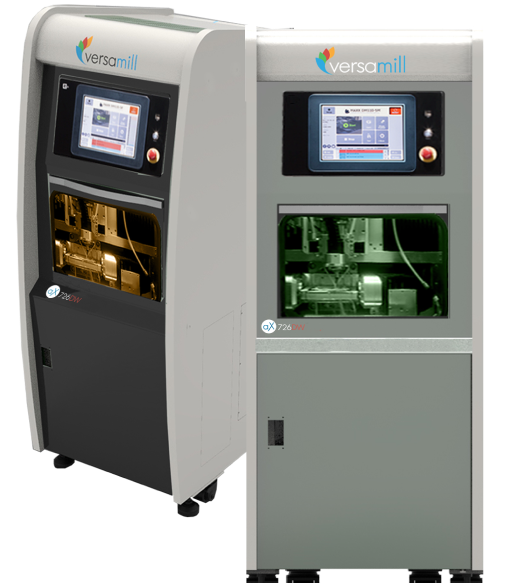

The Automated All-in-One Solution

The Versamill SPEED 7-Series line of dental machining centers features the latest in high-speed dental machining technology. Designed to
meet the demanding requirements of modern CAD/CAM processes
SPEED 7 Series solutions allow for the reliable, precision processing of virtually all present and future dental materials in a single, simple
system.

Additionally, the zero-point clamping system allows you to secure a wide range of adapters to facilitate the processing of dental materials In a wide variety of form factors, including pre-milled abutment blanks and glass-ceramic blanks. C-Clamp holders are also supported.

35Ncm

POWERFUL HIGH-TORQUE 60,000 rpm AC SPINDLE

6.0mm

FLEX RESTING TOOSHANK DIAMETER

260kg

WEIGHT WITH GRANITE BASE

Complete Solution

We provide the widest range of fixtures for our Versamill dental mills, whether it be for premill blanks, Cerec or PrograMILL blocks, C-Clamps, etc. We can supply either an OEM or custom designed and manufactured fixture to meet your needs. We currently support industry leaders such as; DESS, Straumann, Medentika, Open Implants, Dentaswiss, Preat, NT Trading, Arum, and others.

Hightlights

The extreme stability of the AX726DW together with its high-torque spindle and servo motor-driven drives, enable the processing of virtually any prosthesis made of the vast choice of dental materials available today and tomorrow—all with fine detail and clean, thin restorative margins.

AX 726DW PRO highlights include:

High-torque, 2.7kW spindle
3X hybrid-ceramic bearings
Flex reducing 6mm tooling
Choice of hyperDENT or GO2cam software
Small footprint
Circular, mandrel, C-clamp & Pre-mill fixtures
Much more...

Features

High-torque, 2.7kW max spindle with 3 ceramic hybrid bearings that help to reduce margin thickness and extend spindle life by reducing deflection and protecting against contamination by cutting chips and coolant.

Heavy, stable granite frame with the lowest coefficient of linear expansion. Provides the rigidity and precision to enable the production of the highest possible restoration precision.

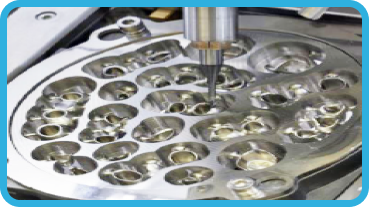

16-station ATC houses sturdy, flex-resisting 6mm-diameter cutting tools with automatic tool management and breakage sensor.

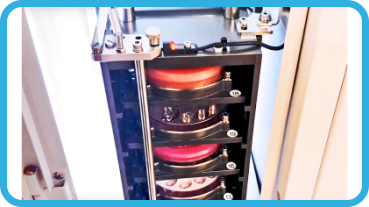

Maximize productivity by overnight and week-end operation with a class-leading 18-position robotic autoloader.

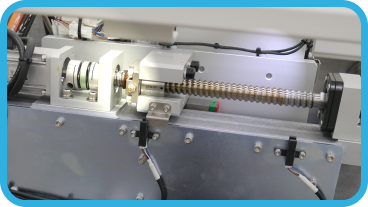

Superior dynamic motion and positional accuracy thanks to large-diameter precision ball screws, anti-backlash ball nuts, and linear guides with closed loop servo drives.

Designed for higher-production dental labs and milling centers, Series 7 machines are capable of machining hard metals such as titanium and cobalt chrome, as well as zirconia and virtually any other dental material, including models.

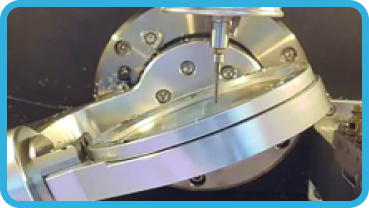

Couple class-leading rotary operating range of ± 35° and 94mm Z-axis stroke, with granite frame, and Axsys expert machining templates to produce restorations with undercuts, and clean, thin margins.

Each Versamill goes through our 45-point inspection and validation process at our Traverse City, MI R&D facility in addition to testing of perpendicularity of A-axis and B-axis–vital for accurate multi-axis manufacturing.

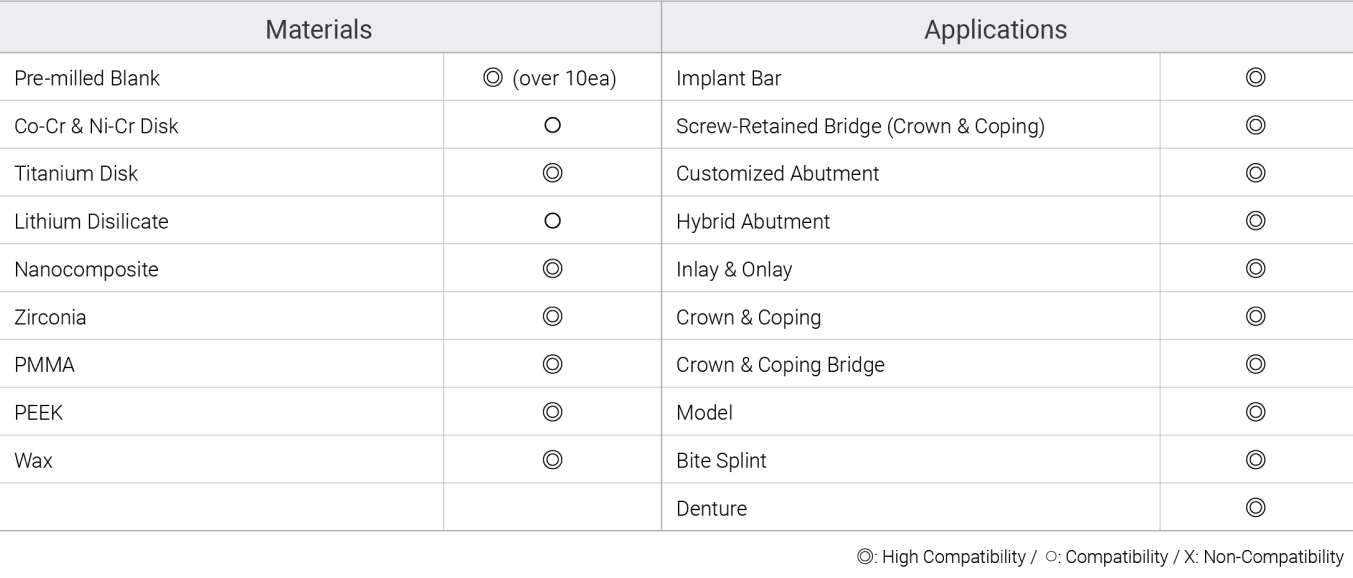

Materials and Indications

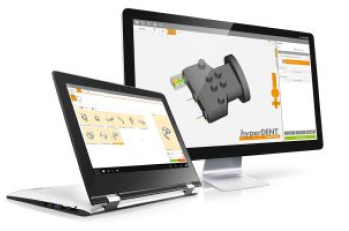

CAM SOFTWARE:
PROVEN & FULL-FEATURED

The Versamill AX314DW is powered by your choice of GO2cam or hyperDENT CAM software from FOLLOW-ME! Technology Group. These products are selected as they incorporate efficient proven milling cycles from the industrial segment to provide maximum process stability and indication quality, including patent-protected milling strategies used for complex materials ensuring perfect surface quality while maximizing tool life

All Versamill machines come with Axsys’ award-winning support and unique software and machine enhancements not available from any other supplier. We leverage over 40 years of digital design and manufacturing experience—spanning a variety of industries—to provide additional functionality, unrivaled reliability, and increased productivity.

Specifications
