The Choice of Popular High-Production
Milling Centers and Dental laboratories

The Automated All-in-One Solution

The Versamill AX500 line of dental machining centers features the latest in high-speed dental machining technology. Designed to meet the demanding requirements of modern CAD/CAM processing, AX500 solutions allow for the reliable, precision processing of virtually all present and future dental materials in a single, simple system.

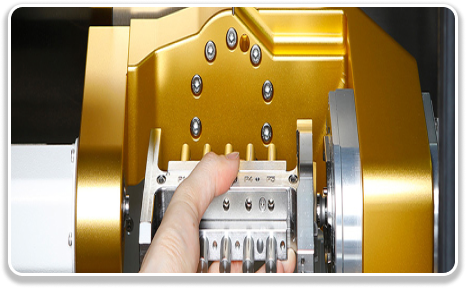

The standard zero-point clamping system of the Versamill AX500 and AX500L allows a fast and precise change of the complete blank holder.

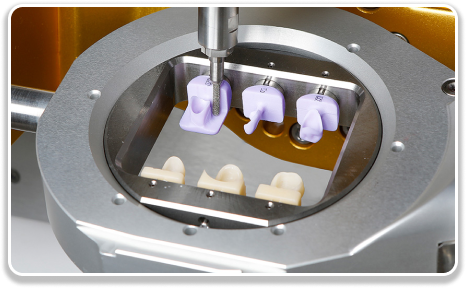

Additionally, the zero-point clamping system allows you to secure a wide range of adapters to facilitate the processing of dental materials In a wide variety of form factors, including pre-milled abutment blanks and glass-ceramic blanks. C-Clamp holders are also supported.

Extreme Rigidity, Precision and
Vibration-free Operation

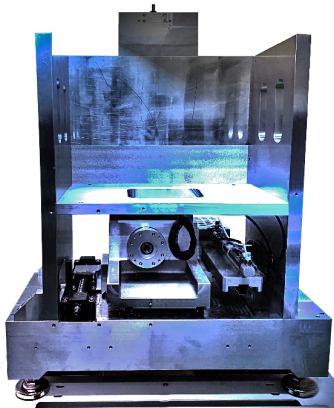

Versamill features like cast aluminum-alloy or aluminum-fabricated frames, high-torque spindle, large-diameter pre-loaded ballscrews, heavy-duty linear guideways, zero stack tolerance rotary axes and more enable you to quickly and reliably manufacture restorations with perfect fits and razor-sharp margins—with the minimum of profit-robbing, error-prone post-machining handwork.

Money-Making Features Providing

Ease of use, repeatable performance, and high-precision results,

35Ncm

POWERFUL HIGH-TORQUE 60,000 rpm AC SPINDLE

6.0mm

FLEX RESISTING TOOLSHANK DIAMETER

470kg

WEIGHT WITH CAST ALUMINUM-ALLOY FRAME

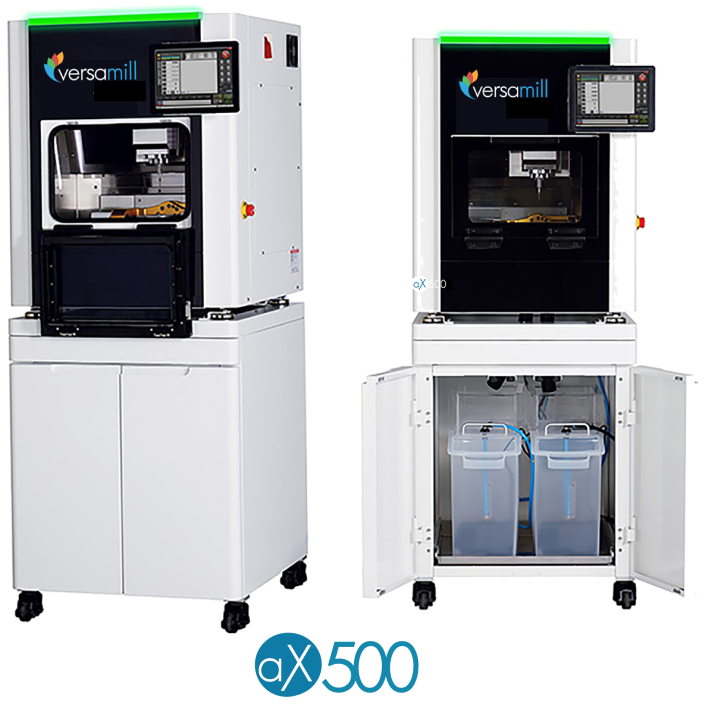

The Basics…

5-Axis dental milling center capable of continuous 5-Axis simultaneous machining including undercuts.
Machine hard and soft materials - including: titanium, stainless, CoCr, glass-ceramics, zirconia, PMMA and More.
Ideal for the production of abutments, bar overdentures, bridges, copings, crowns and models.
Long tool life and superior surface finishes due to extreme stability and minimum vibration.
Dual coolant tanks, eliminates cross-contamination and makes for easy swapping between metal and zirconia.
Flexible universal fixturing for quick adaption to different materials and restoration types.
Integrated HSM machine control.
Open architecture design compatible with industry standard software for easy integration into a complete manufacturing solution.

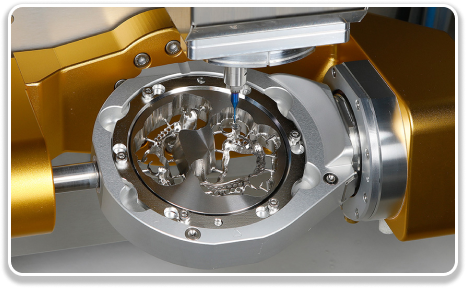

With the AX500/500L Zero-Point System

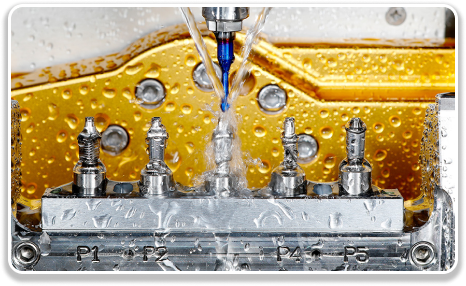

With the AX500/500L Zero-Point System, you can achieve optimum origin-point precision despite repeated jig replacement, allowing for the precision machining of complex restoration designs. Servo motors with built-in absolute encoders and auxillary support compensate for even the finest of vibration

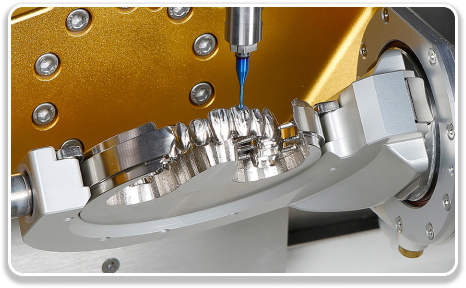

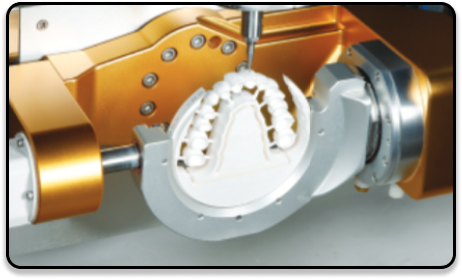

LABIAL SIDE MACHINING

With the Versamill AX500/500L open
C-Type Jig, you can minimize time spent in
the precision machining and post-machin
ing of labial (or buccal) side texture and
undercut areas

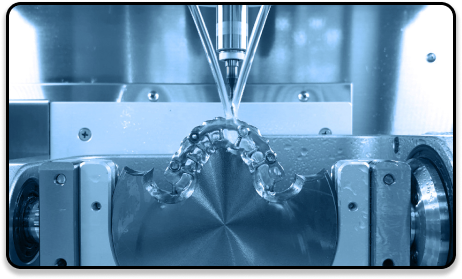

BEST-IN-CLASS SPINDLE

With the powerful spindle from Sycotec in Germany, the Versamill AX500 and AX500L boast excellent performance in the machining of all dental CAD/CAM materials, including metals such as Co-Cr, titanium, and Ni-Cr.

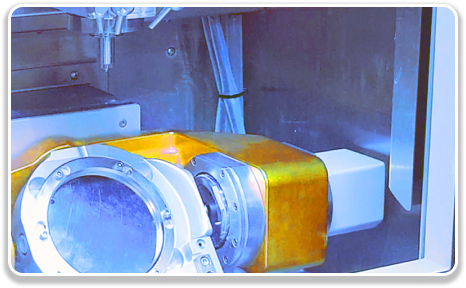

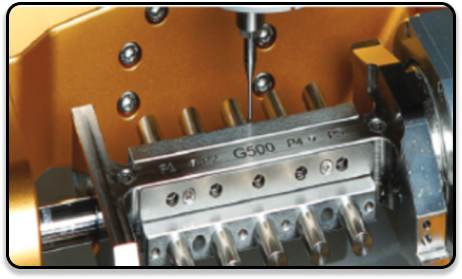

WIRELESS AUTO CALIBRATION

Wireless Auto Calibration improves usability and
the accuracy by maintaining the best operating condition. The auto-calibration function even
assures the location of each position of a pre-milled blank, allowing the fabrication of precision custom abutments.

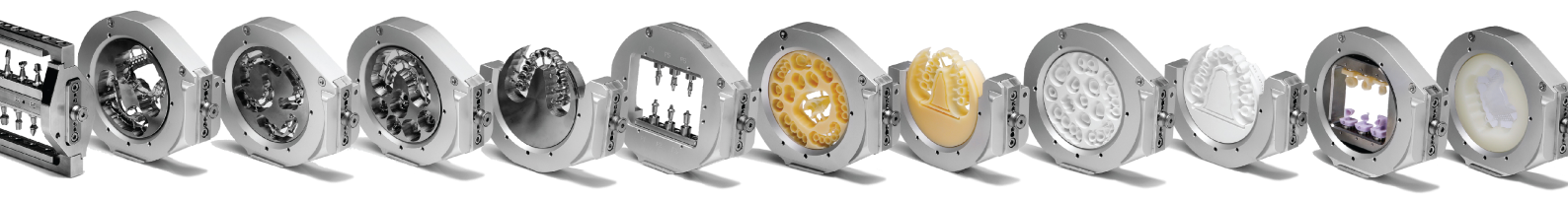

Materials and Indications

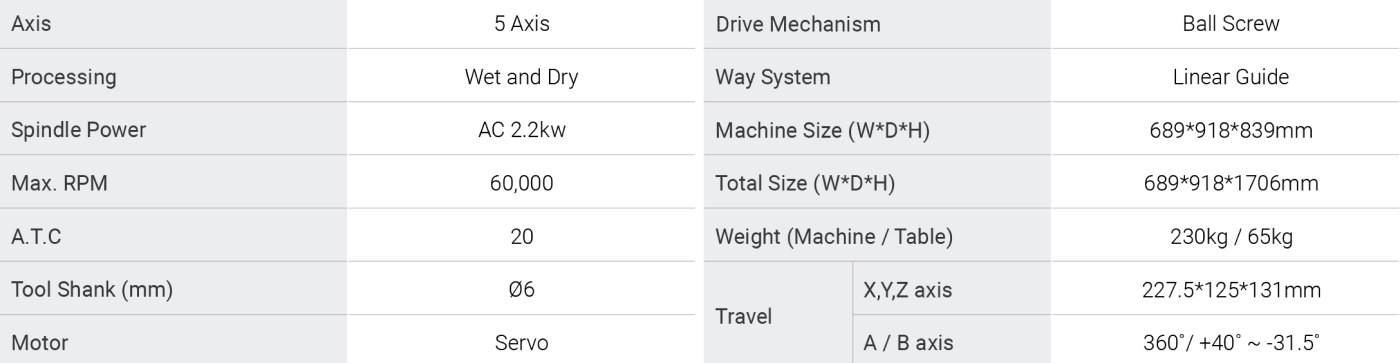

Specifications…
