ax450 – Axsys Dental

For the Fabrication
of All Dental Prosthesis

Extreme Rigidity, Precision and Vibration-free Operation

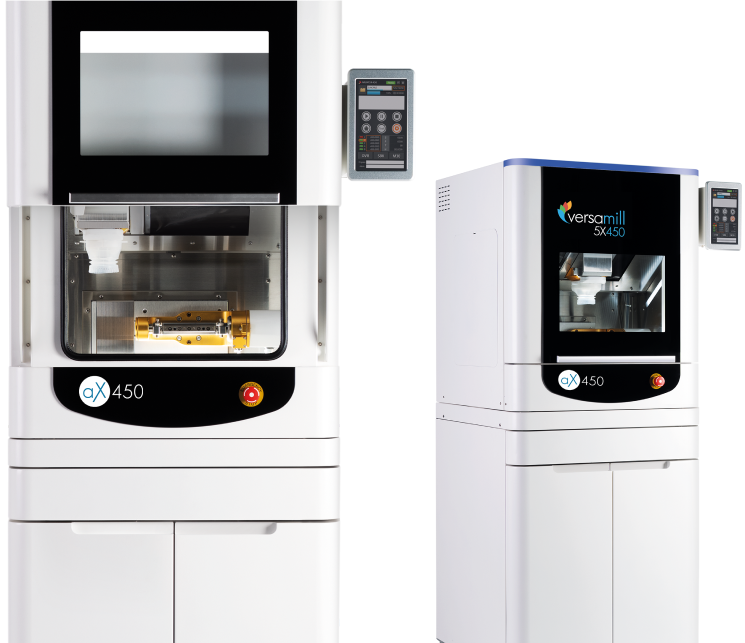

The Versamill 5X450 is a compact 5-axis dental machining center designed for the wet or dry precision machining of copings, crowns, bridges, dentures, titanium custom abutments, models, and more.

Versamill features like cast aluminum-alloy or aluminum-fabricated frames, high-torque spindle, large-diameter pre-loaded ballscrews, heavy-duty linear guideways, zero stack tolerance rotary axes and more enable you to quickly and reliably manufacture restorations with perfect fits and razor-sharp margins—with the minimum of profit-robbing, error-prone post-machining handwork.

Couple Axsys Advantage exclusive enhancements like a higher-torque spindle and high-speed probing with standard Versamill features like heavy-duty aluminum-alloy frame, large-diameter ballscrews, a closed-loop drive system, linear guideways, heavy-duty gear reducers, and more enable you to quickly manufacture restorations with perfect fits and virtually no post-processing.

High-Efficiency Machining Templates

User-Friendly Operating Enviornment Based on our extensive know-how
accumulated over hundreds of man years of all aspects of digital manufac-
turing, we provide optimal, high-speed machining templates for all indications.
This is Axsys’ unique value that cannot be provided anywhere else.

User-Friendly Operating Enviornment

With Auto Calibration , you can maintain optimal machine performance anytime, anywhere. User interface design with enhanced ease of use makes operation of equipment easy and simple

1.28kW

60,000 RPM AC
SPINDLE

6.0mm

Flex-resisting tool shank diameter

185kg

WEIGHT WITH HEAVY-DUTY FRAME

The Basics

5-Axis dental milling center capable of 5-Axis simultaneous machining including undercuts.
Closed-loop position control assures accuracy and eliminates frequent machine calibrations.
Machine wide variety of materials - including: zirconia, glass-ceramics, wax, Ultimate, titanium* & more.
Ideal for the production of bridges, copings, inlays, onlays, crowns, models, and more— even titanium abutments*.
Long tool life and superior surface finishes due to extreme stability and minimum vibration.

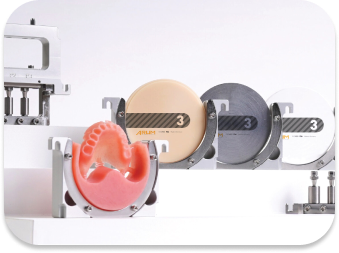

Flexible universal fixturing for quick adaption to different materials and restoration types.
Integrated HSM machine control.
Open architecture design compatible with industry standard software for easy integration into a complete manufacturing solution.

Use of precision ball screws with anti-backlash ball nuts along with linear guides and closed-loop servo drives assures superior dynamic motion and positional accuracy.

With the use of an open C-type cartridge, you can precisely machine the lateral side (buccal side) and undercut zone that requires additional machining. With the amazing power of the best-in-class spindle AC 1.28 kw, you can machine various shapes and materials.

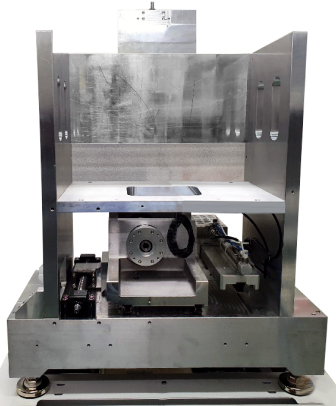

Heavy-gage aluminum fabricated frame provides the rigidity required to absorb vibration and dissipate heat.

5-axis operation with quick-change universal fixture. Rotary axis trunnion driven by high-torque reduction gears with fully supported zero stack tolerance quick-change part holding fixture.

Cuff side, occlusal side, and retention groove using AT cartridge. In addition to simple top & bottom side machining, you can machine cuff side (Gingival side), occlusal side, and retention groove using AT Cartridge.

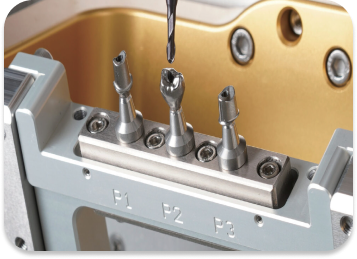

You can machine custom abutments from which the connector has been removed. removal of connector reduces the work during the post production stage, allowing you to produce prostheses in a more efficient way

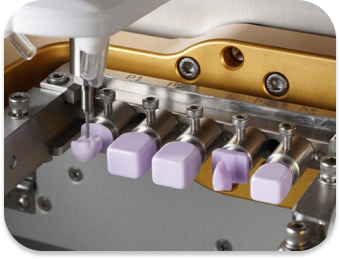

Quick-change 6-unit CAD-block cartridge. Facilitates light-duty production of lithium disilicate, Lava Ultimate, and other pre-mounted dental material.

Heavy-duty Machine stand
Provides stability and storage while housing the cooling liquid filtration and delivery system.

As with our Versamill machine technology, we leverage our 40 years of digital design and manufacturing experience – spanning all market segments including the dental industry – tp provide additional software enhancements over and above a vendors’ standard deliverable product. These unique enhancements, which are not available from any other supplier, provide additional functionality, while assuring unrivaled reliability and increased productivity.

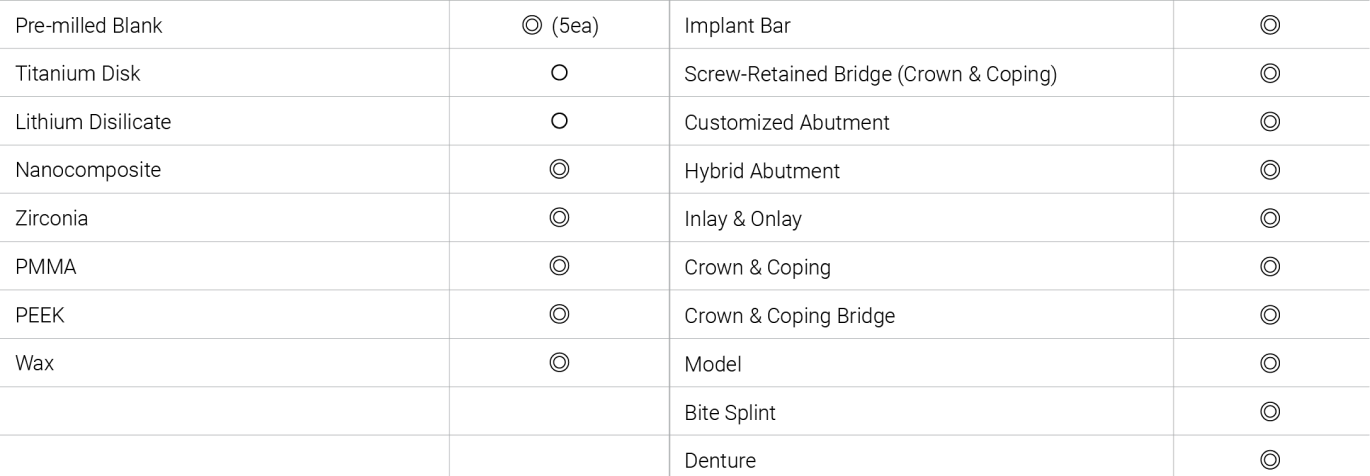

Materials and Indications

Specifications
