For Processing All Dental Materials

Versamill 3 Series machines are tested and fully qualified to assure accuracy and that they arrive fully ready for production. This includes perpendicularity between rotary axes, which is critical in 5-axis machining.

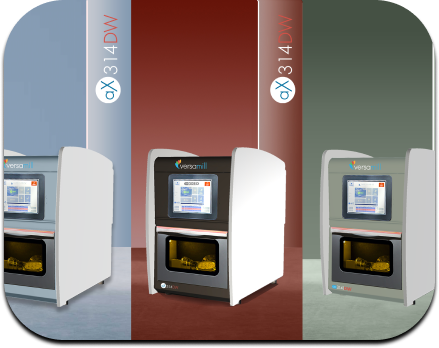

All Versamill 3 Series machines are assembled in our Traverse City facility using foreign and domestic components. This includes the machine control which is developed in the USA.

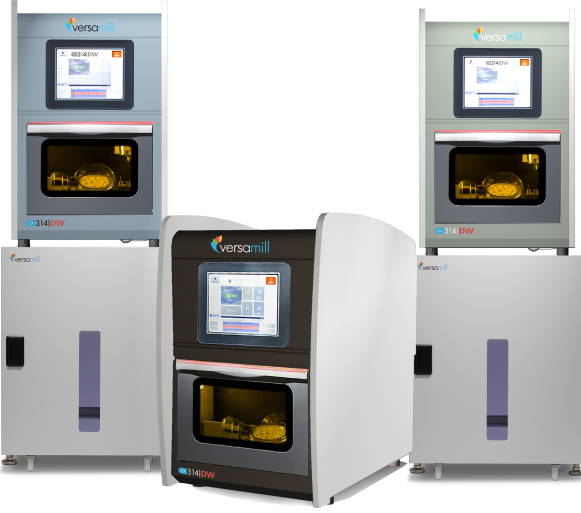

You can even select you choice of colors. Choose between Charcoal, Clinician Blue, and Sage Wisdom–whichever best suits your unique environment.

Extreme Rigidity,

Precision and Vibration-free Operation

Versamill features like granite machine bases, 6,0mm tooling, high-torque spindle, large diameter pre-loaded ball screws, heavy-duty linear guideways, zero stack tolerance rotary axes and more enable you to quickly and reliably manufacture restorations with perfect fits and razor-sharp margins- with the minimum of profit-robbing, error-prone post machining hand work.

Due to the precise positioning of our modular jigs and zero-tolerance fixturing system, A wide selection of Pre-milled abutment holders for the manufacturers of the most popular pre-milled abutment blanks,

The Automated All-in-One Solution

The Versamill SPEED 3-Series line of dental machining centers features the latest in high-speed dental machining technology. Designed to meet the demanding requirements of modern CAD/CAM processing, SPEED 3-Series solutions allow for the reliable, precision processing of virtually all present and future dental materials in a single, simple system.

Additionally, the modular fixturing system allows you to secure a wide range of adapters to facilitate the processing of dental materials In a wide variety of form factors, including pre-milled abutment blanks and glass-ceramic blanks. C-Clamp holders are also supported.

1.37kW

80,000 rpm high-torque spindle

CLOSED-LOOP

Servo drives w/absolute encoders

130kg

WEIGHT WITH GRANITE BASE

Complete Solution

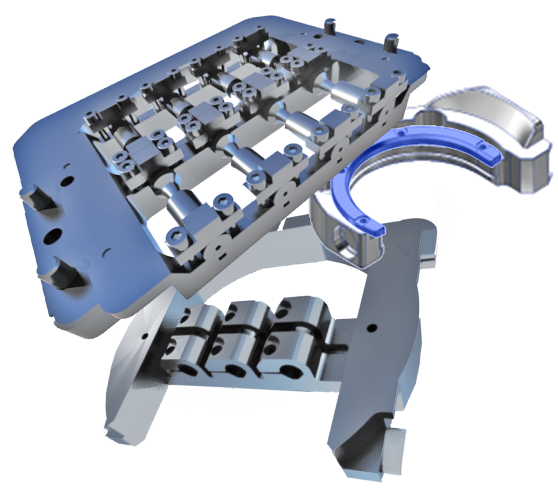

We provide the widest range of fixtures for our Versamill dental mills, whether it be for premill blanks, Cerec or PrograMILL- type blocks, C-Clamps, etc. We currently support industry leaders such as; DESS, Straumann, Medentika, Open Implants, Dentaswiss, Preat, NT Trading, Arum, and others.

We can also supply either an OEM or custom designed and manufactured fixture to meet your needs.

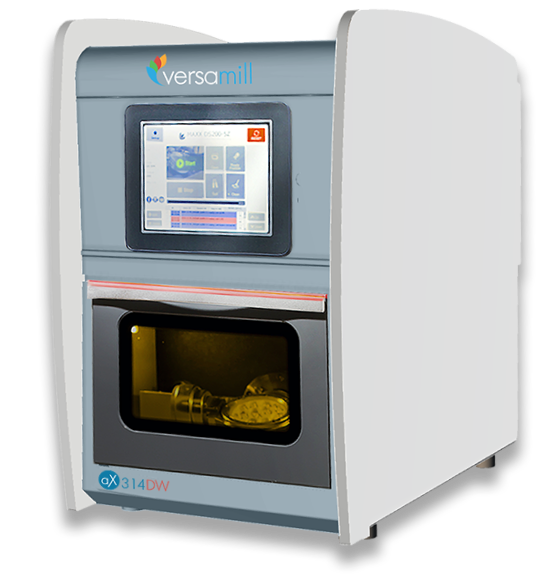

Highlights

The extreme stability of the AX314DW together with its high-torque spindle and servo motor driven drives enable the processing of virtually any prosthesis made of the vast choice of dental materials available today and tomorrow–all with fine detail and clean, thin restorative margins.

AX314DW highlights include:

High-torque, 1.37kW spindle
3X hybrid-ceramic bearings
Flex reducing 6mm tooling
Choice of hyperDENT or GO2cam software
Small footprint
Circular, mandrel, C-clamp & Pre-mill fixtures
Much more...

Features

High-torque, 1.3kW max spindle with ceramic hybrid bearings that help to reduce margin thickness, and extend spindle life by reducing deflection and protecting against contamination by cutting chips and coolant.

Heavy, stable, granite frame with the lowest coefficient of linear expansion. Provides the rigidity and precision to enable the production of highest possible restoration precision.

16-station ATC houses sturdy, flex-resisting 6mm diameter cutting tools with automatic tool management and breakage sensor.

The ultimate in productivity, the AX314DW fixures can facilitate the machining of 10 titanium premill abutments and 6 ceramic blocks.

Superior dynamic motion and positional accuracy thanks to large-diameter precision ball screws, anti-backlash ball nuts and linear guides with closed loop servo drives.

The strength and rigidity of the Versamill AX314DW enables the efficient processing of restorations while yielding the thinnest and cleanest of restorative margins.

C-Clamp fixture provides unlimited access to critical facial features which produces the highest levels of aesthetics–without the concern of undercuts or typical manufacturing limitations.

The strength and rigidity of t Versamill AX314DW enables the efficient processing of all dental restorations while yielding the thinnest and cleanest of restorative margins. Full arch restorations can be produced in as little as 90 minutes.

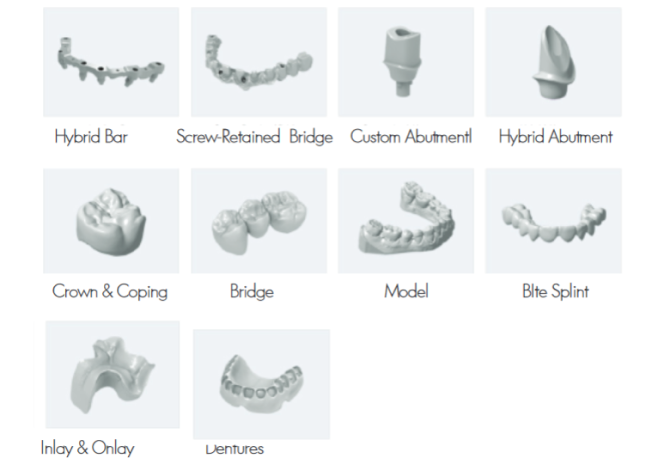

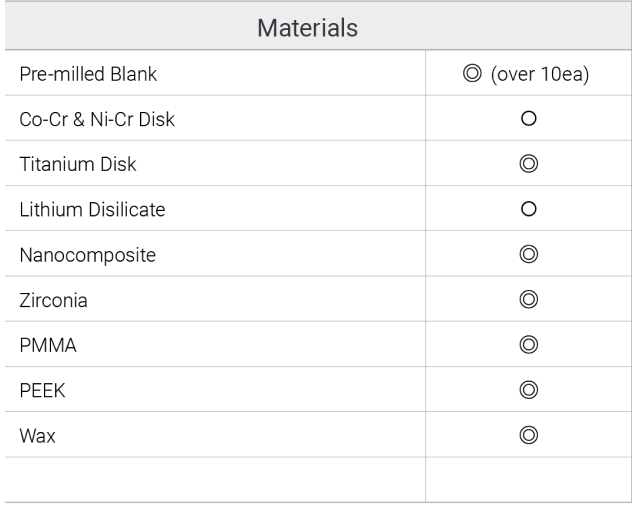

Materials and Indications

CAM SOFTWARE:
PROVEN & FULL-FEATURED

The Versamill AX314DW is powwered by your choice of GO2cam or hyperDENT CAM software from FOLLOW-ME! Technology Group. These products are selected as they incorporate efficient proven milling cycles from the industrial segment to provide maximum process stability and indication quality, including patent-protected milling strategies used for complex materials ensuring perfect surface quality while maximizing tool life

All Versamill machines come with Axsys’ award-winning support and unique software and machine enhancements not available from any other supplier. We leverage over 40 years of digital design and manufacturing experience–spanning a variety of industries–to provide additional functionality, unrivaled reliability and increased productivity.

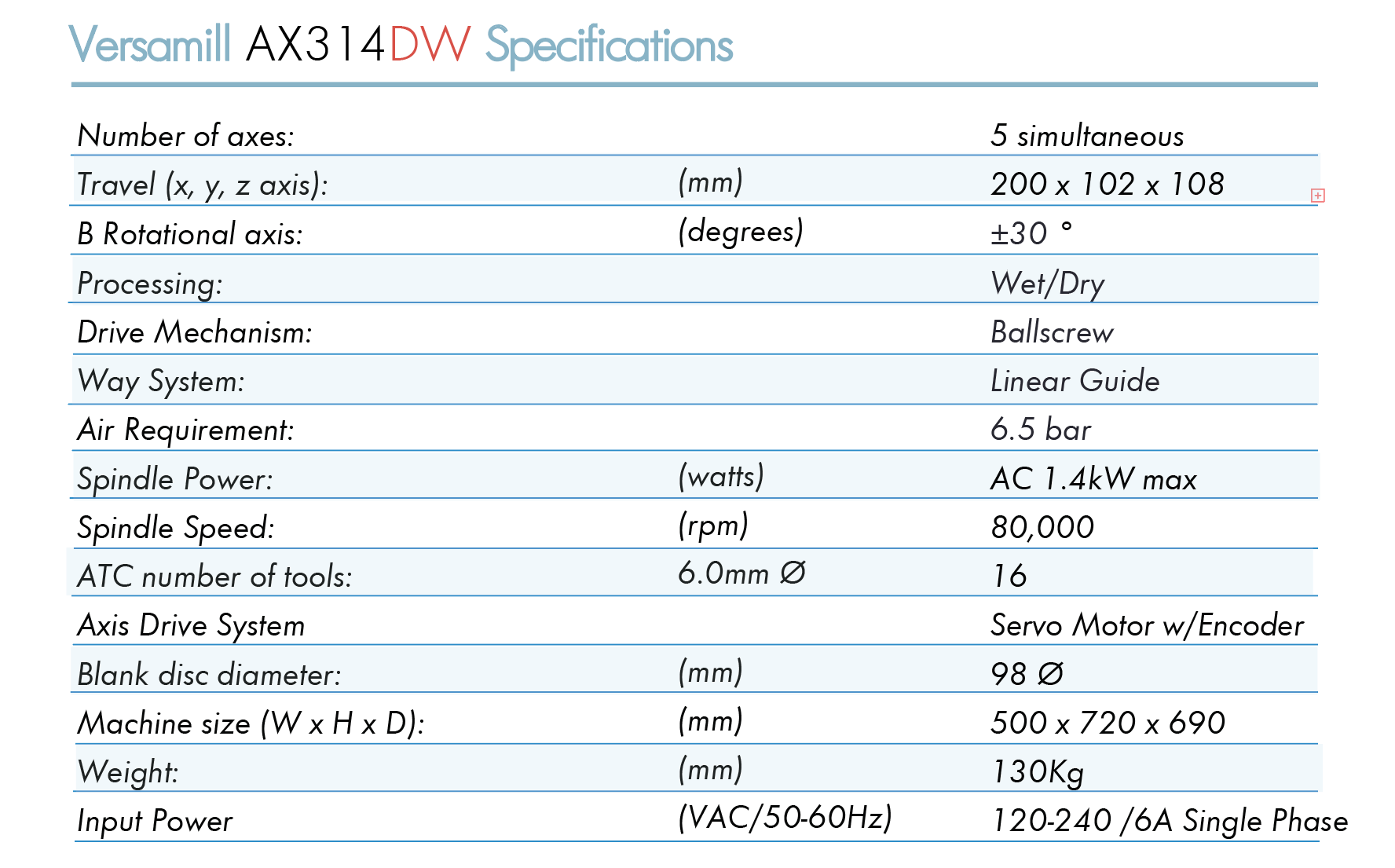

Specifications

Number of axes:		5 simultaneous
Travel (x, y, z axis):	(mm)	200 x 102 x 108
B Rotational axis:	(degrees)	+30 °
Processing:		Wet/Dry
Drive Mechanism:		Ballscrew
Way System:		Linear Guide
Air Requirement:		6.5 bar
Spindle Power:	(watts)	AC 1.4kW max
Spindle Speed:	(rpm)	80,000
ATC number of tools:	6.0mm	16
Axis Drive System		Servo Motor w/Encoder
Blank disc diameter:	(mm)	98D
Machine size (W x H x D):	(mm)	500 x 720 x 690
Weight:	(mm)	130Kg
Input Power	(VAC/50-60Hz)	120-240 /6A Single Phase
