ax305D – Axsys Dental

For Processing All Dental Materials

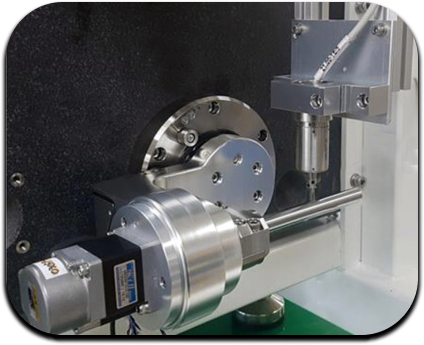

Versamill 3 Series machines are tested and fully qualified to assure accuracy and that they arrive fully ready for production. This includes perpendicularity between rotary axes, which is critical in 5-axis machining.

All Versamill 3 Series machines are assembled in our Traverse City facility using foreign and domestic components. This includes the machine control, which is developed in the USA.

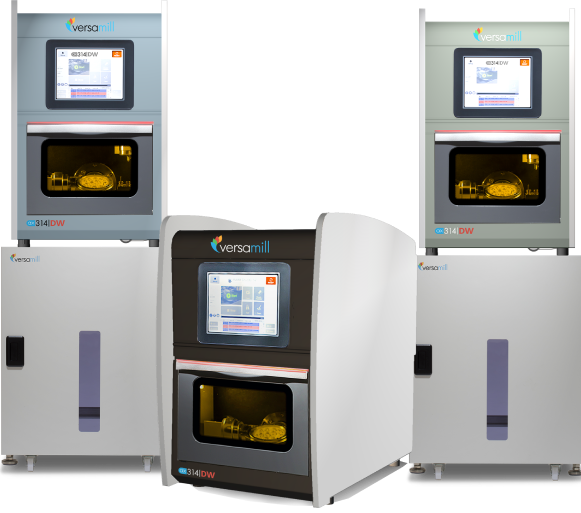

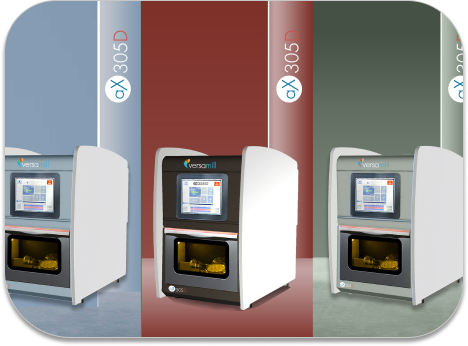

You can even select your choice of colors. Choose between Charcoal, Clinician Blue, and Sage Wisdom—whichever best suits your unique environment. 

Extreme Rigidity,

Precision and Vibration-free Operation

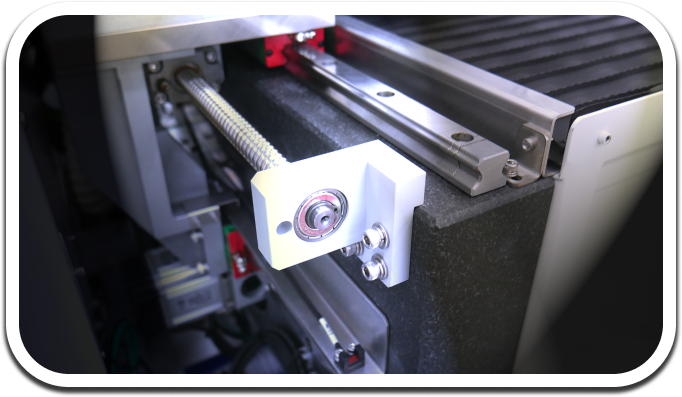

Versamill features like granite machine bases, 6.0mm tooling, high-torque spindle, large diameter pre-loaded ball screws, heavy-duty linear guideways, zero stack tolerance rotary axes, and more enable you to quickly and reliably manufacture restorations with perfect fits and razor-sharp margins—with the minimum of profit-robbing, error-prone post-machining hand work.

Due to the precise positioning of our modular jigs and zero-tolerance fixturing system, we offer a wide selection of pre-milled abutment holders for the manufacturers of the most popular pre-milled abutment blanks.

The Ultimate Dry-Milling Solution

The Versamill SPEED 3-Series line of dental machining centers features the latest in high-speed dental machining technology. Designed to meet the demanding requirements of modern CAD/CAM processing, SPEED 3-Series solutions allow for the reliable, precision processing of virtually all present and future dental materials in a single, simple system.

Additionally, the modular fixturing system allows you to secure a wide range of adapters to facilitate the processing of soft dental materials In a wide variety of form factors, including pre-milled abutment blanks. C-Clamp holders are also provided.

Play Video

0.5kW

60,000 rpm high-torque spindle

CLOSED-LOOP

Servo drives w/absolute encoders

100kg

WEIGHT WITH GRANITE BASE

Complete Solution

We provide the widest range of fixtures for our Versamill dental mills, whether it be for premill blanks, Cerec or PrograMILL- type blocks, C-Clamps, etc. We currently support industry leaders such as; DESS, Straumann, Medentika, Open Implants, Dentaswiss, Preat, NT Trading, Arum, and others.

We can also supply either an OEM or custom designed and manufactured fixture to meet your needs.

Highlights

The AX305D is a dry processing machine that features a 12-position tool changer with tool management system.  

The extreme stability of the AX305D together with its high-torque spindle and servo motor-driven drives enable the processing of virtually any prosthesis made of the vast choice of dental materials available today and tomorrow—all with fine detail and clean, thin restorative margins.

AX305D highlights include:

High-torque, 0.5kW spindle
3X hybrid-ceramic bearings
Standard 3mm tooling
Choice of hyperDENT or GO2cam software
Small footprint
Circular, mandrel, & C-clamp fixtures
Much more...

Features

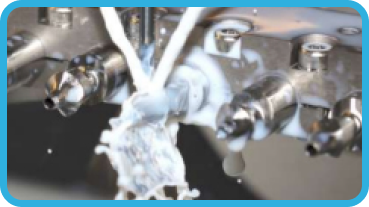

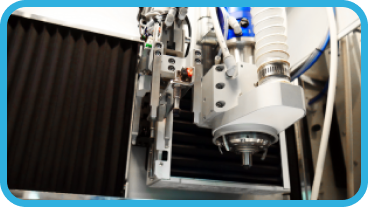

High-torque, .5kW max spindle with ceramic hybrid bearings that help to reduce margin thickness, and extend spindle life by reducing deflection and protecting against contamination by cutting chips and coolant.

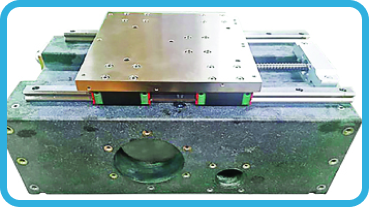

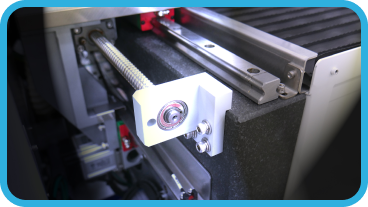

Heavy, stable, granite frame with the lowest coefficient of linear expansion. Provides the rigidity and precision to enable the production of the highest possible restoration precision.

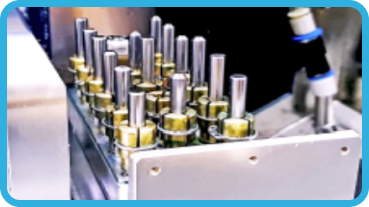

12-station ATC houses sturdy, flex-resisting 6mm-diameter cutting tools with automatic tool management and breakage sensor.

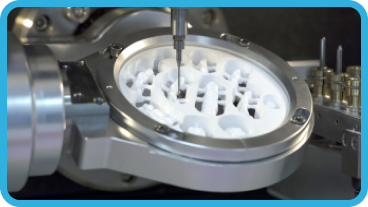

The ultimate in productivity, the AX314DW fixtures can facilitate the machining of 10 titanium premill abutments and 6 ceramic blocks.

Superior dynamic motion and positional accuracy thanks to large-diameter precision ball screws, anti-backlash ball nuts, and linear guides with closed loop servo drives.

The strength and rigidity of the Versamill AX314DW enable the efficient processing of restorations while yielding the thinnest and cleanest of restorative margins.

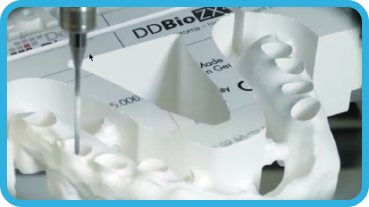

The C-Clamp fixture provides unlimited access to critical facial features, which produces the highest levels of aesthetics—without the concern of undercuts or typical manufacturing limitations.

The strength and
rigidity of the Versamill AX314DW enables the efficient processing of
all dental restorations while yielding the thinnest

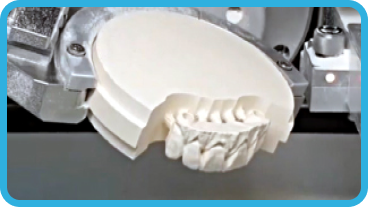

and cleanest of restorative margins. Full arch restorations can be produced in as little as 90 minutes.

FLEXIBILITY TO MEET THE DEMANDS OF TODAY AND TOMORROW

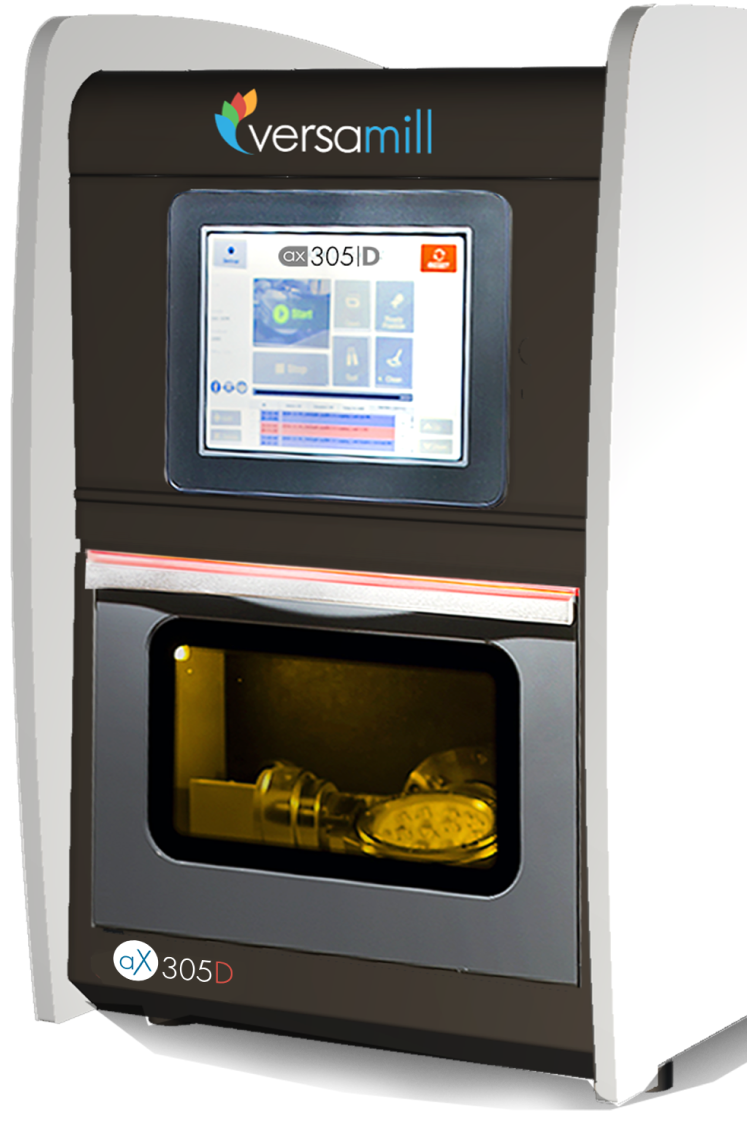

The NEW Versamill® AX305D dental milling machine provides super versatiity with its ability to mill virtually any dental material while providing the thinnest of margins without chipping. Process a wide variety of dental material, including: PMMA, Zirconia, PEEK, Pekkton, Composites, Hybrid-Ceramic, Titanium Premill Abutments, Glass-Ceramic, and More. 98mm disc with up to 30mm thickness.

CAM SOFTWARE: PROVEN & FULL-FEATURED

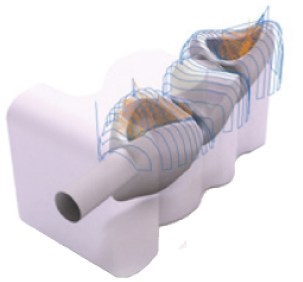

The Versamill AX314DW is powered by your choice of GO2cam or hyperDENT CAM software from FOLLOW-ME! Technology Group. These products are selected as they incorporate efficient proven milling cycles from the industrial segment to provide maximum process stability and indication quality, including patent-protected milling strategies used for complex materials ensuring perfect surface quality while maximizing tool life

All Versamill machines come with Axsys’ award-winning support and unique software and machine enhancements not available from any other supplier. We leverage over 40 years of digital design and manufacturing experience—spanning a variety of industries—to provide additional functionality, unrivaled reliability, and increased productivity.

Specifications

Number of axes:		5 simultaneous
Travel (x, y, z axis):	(mm)	682 x 500 x 712
B Rotational axis:	(degrees)	+-34
Processing:		Dry
Drive Mechanism:		Ballscrew
Way System:		Linear Guide
Air Requirement:	(watts)	6.5 bar
Spindle Power:	(rpm)	AC .SkW max
Spindle Speed:	3.0mm ©	60,000
ATC number of tools:		12
Axis Drive System	(mm)	Servo Motor w/Encoder
Blank disc diameter:	(mm)	98©
Machine size (W x H x D):	(mm)	620 x 1620 x 800
Weight:		100Kg
Input Power	(VAC/50-60Hz)	220 /6A Single Phase
